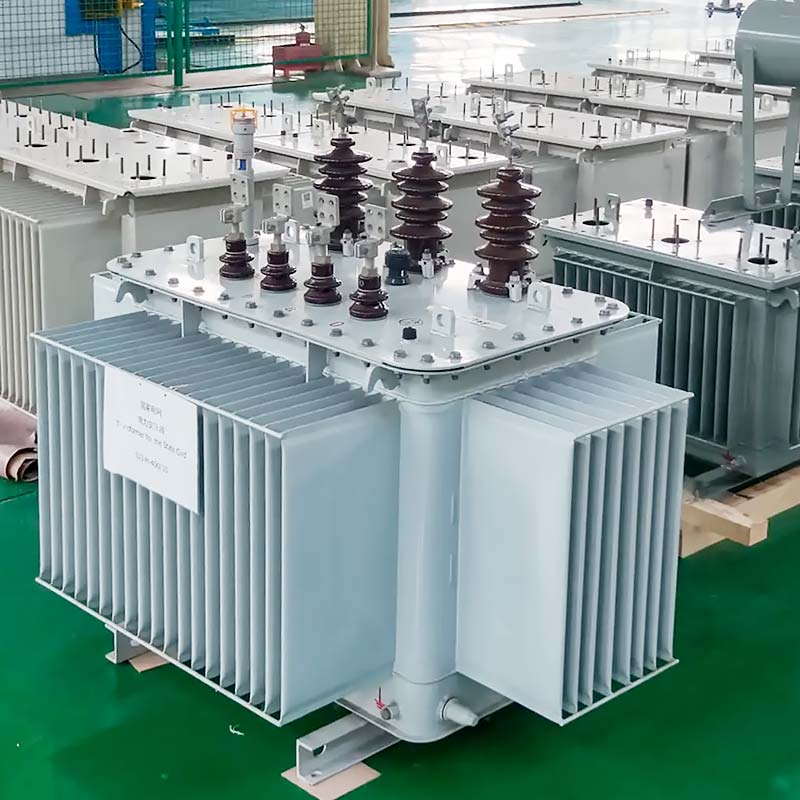

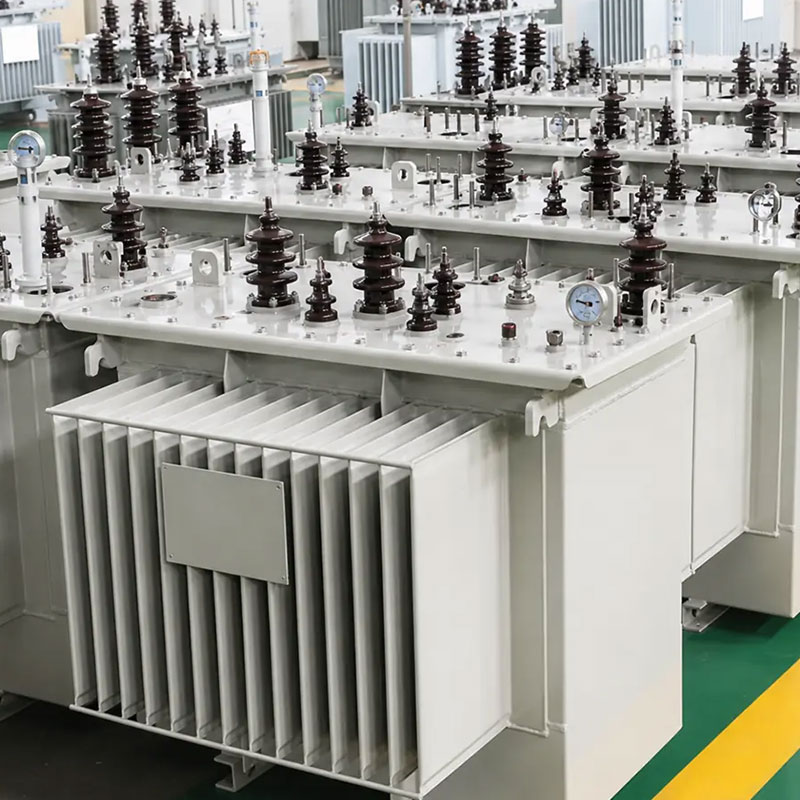

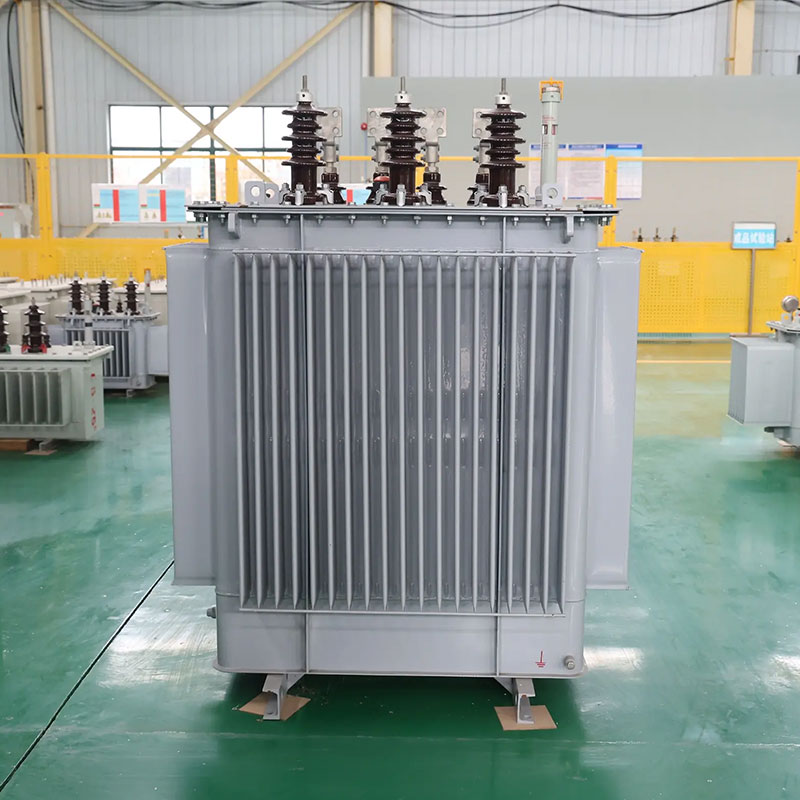

The transformer uses a grain-oriented electrical steel core and a hermetically sealed corrugated tank. The corrugated tank accommodates changes in oil volume during operation while limiting contact between the insulating oil and the surrounding air.
A three-phase oil-immersed transformer for utility networks, industrial facilities and outdoor power distribution.
The transformer uses a grain-oriented electrical steel core and a hermetically sealed corrugated tank. The corrugated tank accommodates changes in oil volume during operation while limiting contact between the insulating oil and the surrounding air.
Core construction, winding arrangement and guaranteed losses are selected according to the required electrical performance and approved technical specification.
| Parameter | Available Configuration |
| Type | Three-phase oil-immersed distribution transformer |
| Core material | Grain-oriented electrical steel |
| Core construction | According to the approved design |
| Reference capacity range | (10 kV class) | 30–1250 kVA |
| Rated voltage | Specified for each project |
| Frequency | Project-specified |
| GB series | S13-M / S20-M / S22-M, where applicable |
| Guaranteed losses | Confirmed in the approved technical data sheet |
| Vector group | Dyn11, Yyn0, Yzn11 or project-specified |
| Cooling method | ONAN |
| Voltage regulation | Off-circuit tapping |
| Tapping range | Project-specific |
| Tank | Hermetically sealed corrugated steel tank |
| Installation | Outdoor or project-specified |
| Accessories | Configured according to the approved specification |
Chinese-market configurations can be reviewed against the applicable requirements of GB 1094, GB/T 6451 and GB 20052.
Export configurations can be reviewed against IEC 60076 or another specified project standard. Final compliance depends on the approved design, guaranteed values and agreed test documentation.
Routine tests may include:
Type tests, special tests and third-party inspection can be agreed before production when required.
Please provide the rated capacity, voltage ratio, frequency, vector group, tapping range, guaranteed loss requirements, applicable standard, installation conditions, required accessories, quantity and destination.
