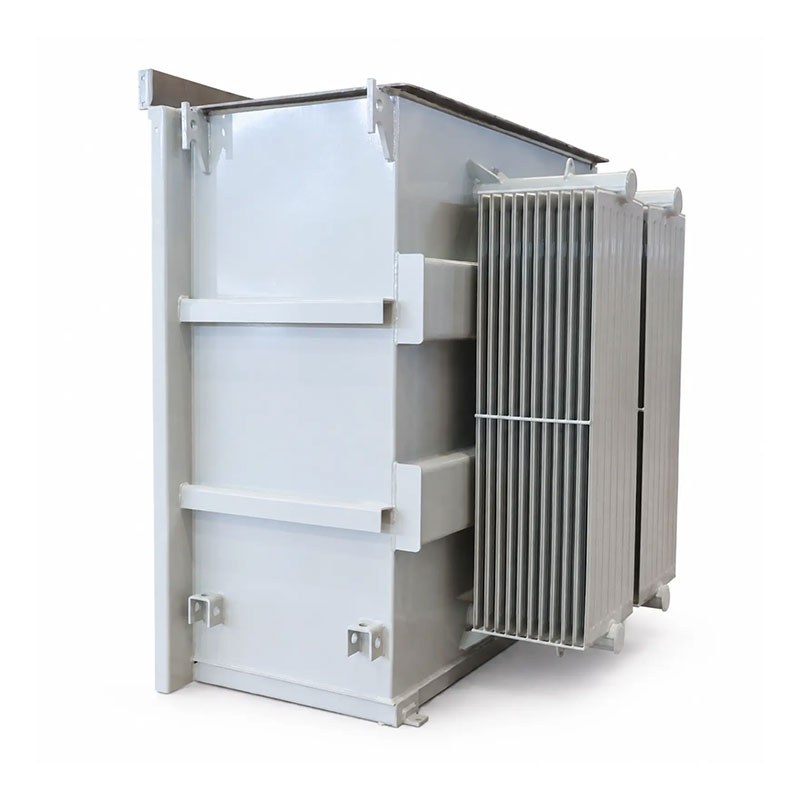

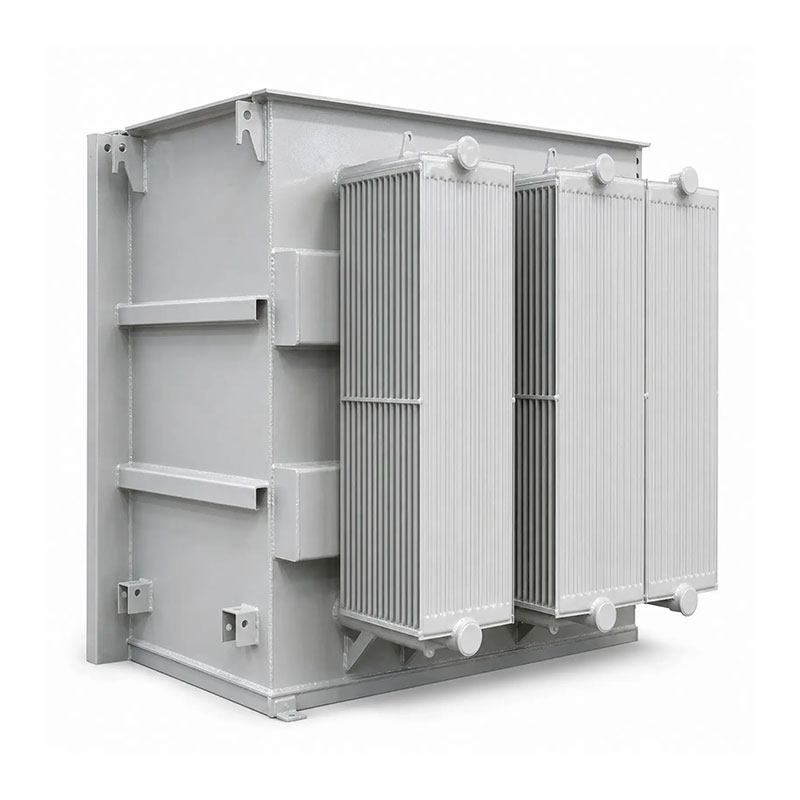

PG type fixed transformer radiators are designed for permanent installation on oil-immersed transformer tanks. Dimensions, panel configuration and connection details can be manufactured according to confirmed transformer drawings.
PG type fixed transformer radiators are designed for permanent installation on oil-immersed transformer tanks. Dimensions, panel configuration and connection details can be manufactured according to confirmed transformer drawings.
| Parameter | Specification |
| Type | PG Fixed Transformer Radiator |
| Cooling Mode | ONAN / ONAF / OFAF |
| Panel Width | 480 / 520 mm |
| Center Distance | 500–4500 mm |
| Panel Pitch | 40 / 45 mm |
| Number of Panels | 5–35 |
| Panel Thickness | Customized according to requirements |
| Connection | According to transformer drawing |
| Internal Processing | Transformer oil flushing |
| Surface Pretreatment | Acid pickling and phosphating |
| Surface Finish | Electrophoretic coating, painting or hot-dip galvanizing as specified |
| Application | Oil-immersed transformers |

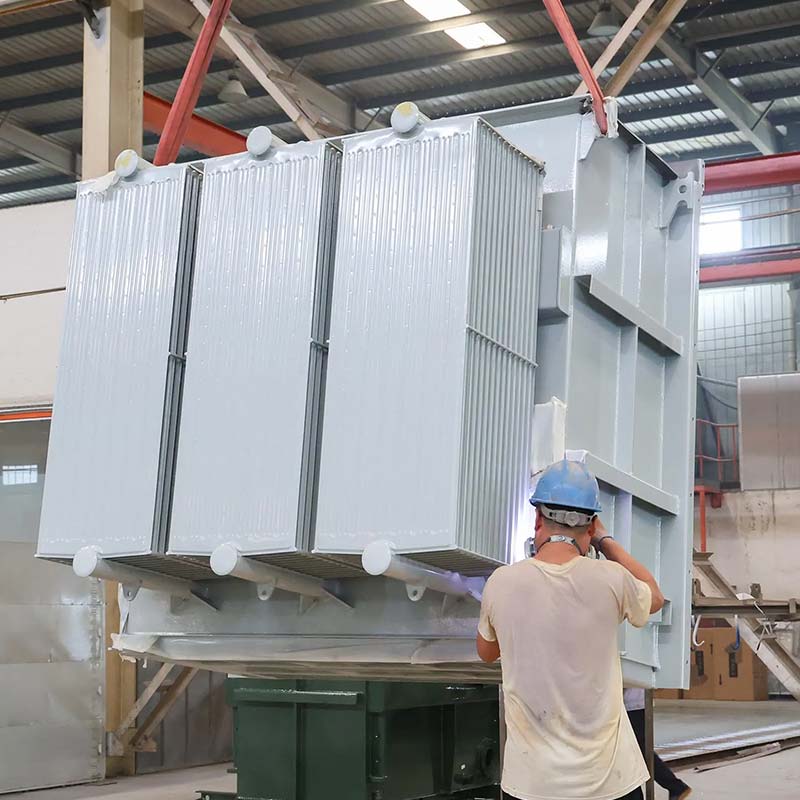

Panel Forming → Assembly & Welding → Acid Pickling & Phosphating → Electrophoretic Coating → Painting / Finishing
Please provide your radiator drawing or key requirements, including panel width, center distance, panel pitch, panel quantity, connection details, surface treatment and quantity.
