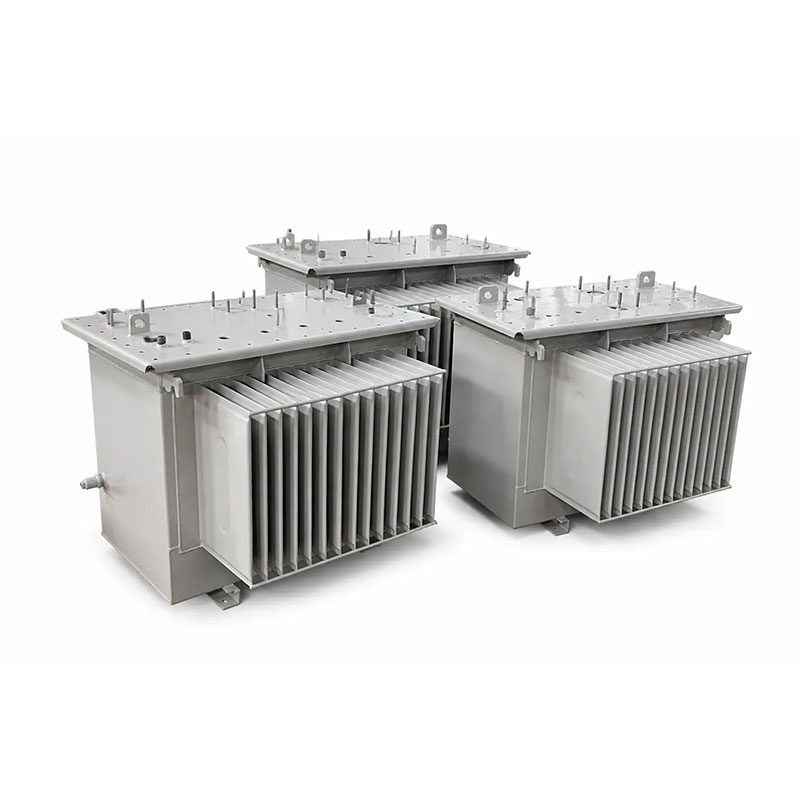

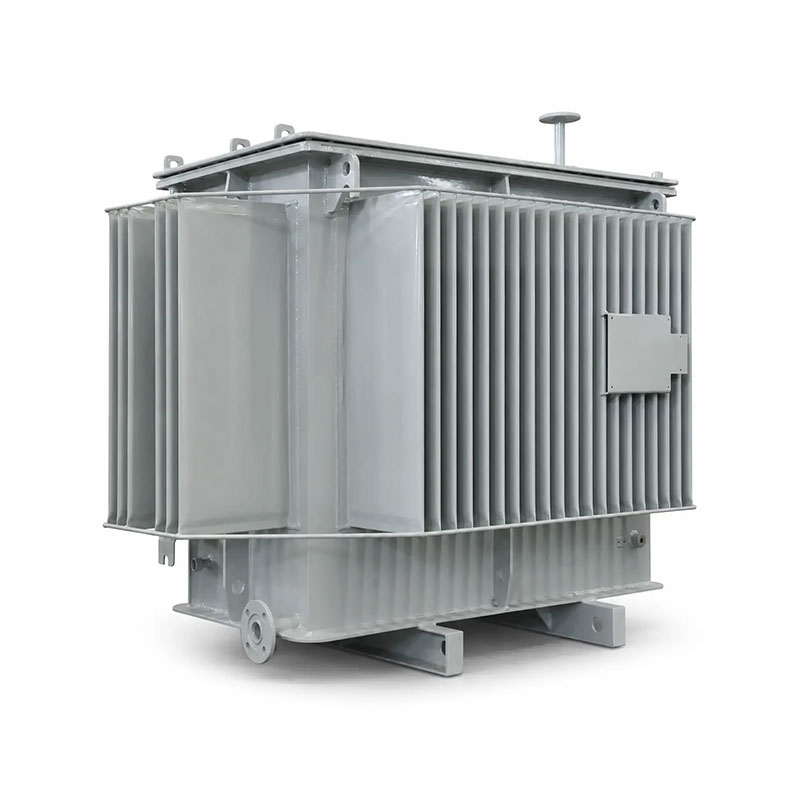

Corrugated transformer tanks combine the tank enclosure and cooling surfaces for oil-immersed distribution transformers. Tank bodies are supplied with or without covers and built to approved drawings.
Corrugated transformer tanks combine the tank enclosure and cooling surfaces for oil-immersed distribution transformers. Tank bodies are supplied with or without covers and built to approved drawings.
Drawing-Based Configuration
Tank dimensions, interfaces and mounting structures are customized for each transformer design.
Configurable Fin-Wall Design
Corrugation pitch, depth, panel width and layout can be selected within the available production range.
Optional Tank Cover

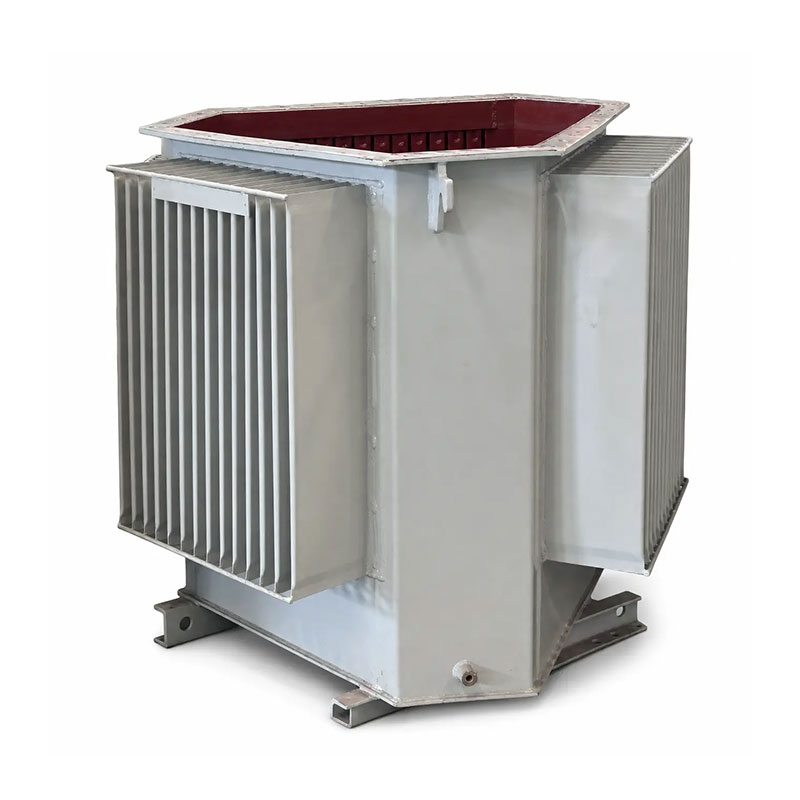

Tank bodies can be supplied separately or together with a customized cover.
Controlled Fabrication
Laser cutting, corrugation forming and robotic welding help maintain consistent dimensions and weld quality.
| Parameter | Available Range / Description |
| Product Type | Corrugated tank body or tank assembly |
| Aplicação | Oil-immersed distribution transformers |
| Supply Configuration | With or without tank cover |
| Corrugation Pitch | 40–60 mm |
| Corrugation Depth | 30–400 mm |
| Corrugated Panel Width | 300–1,400 mm, in 50 mm increments |
| Tank Dimensions | Custom |
| Material and Thickness | As specified |
| Tratamento Superfície | Project-specific coating system |
Key dimensions, interface positions and welded areas are checked against approved drawings. Leak-test method, pressure and holding time are confirmed during technical review.
For an accurate quotation, please provide:
