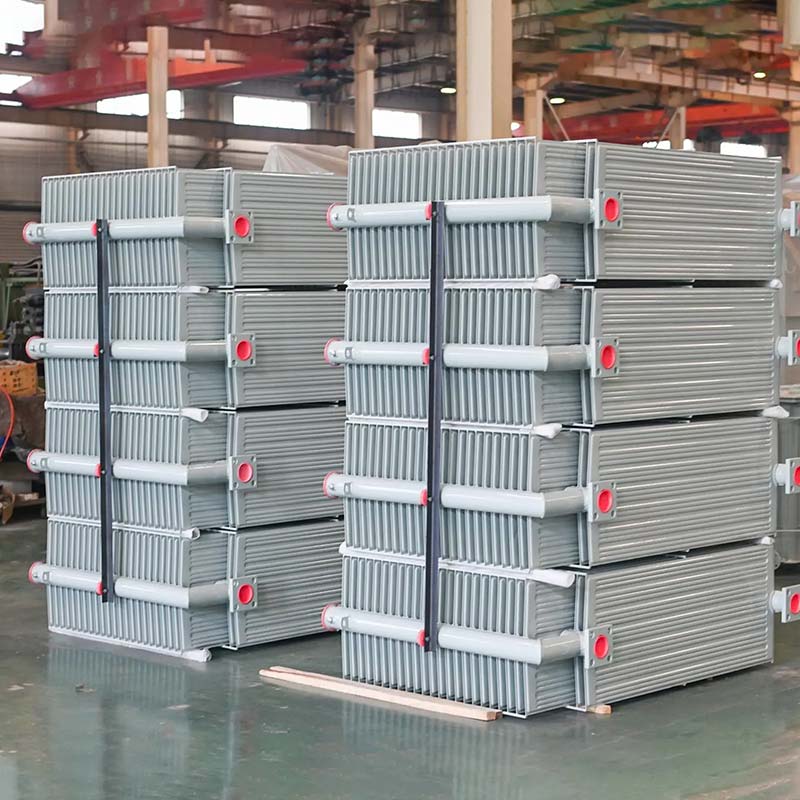

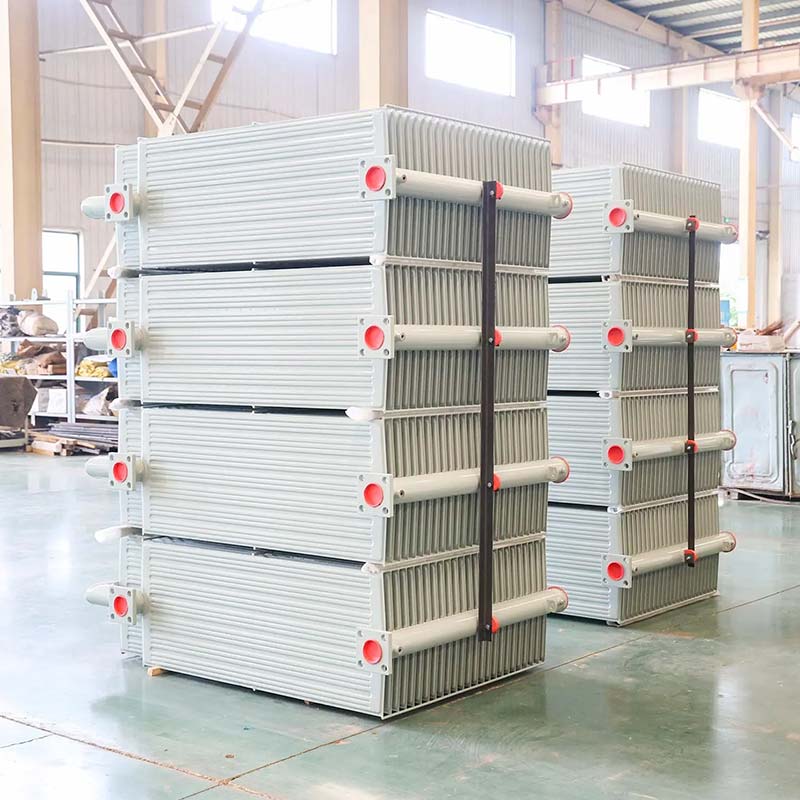

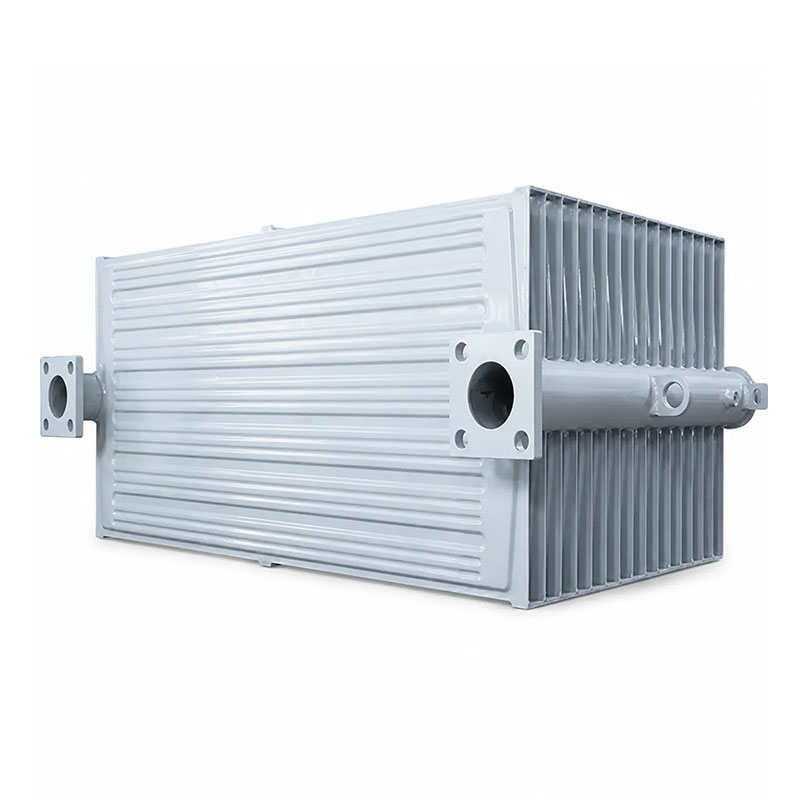

PC type detachable transformer radiators use flange connections, allowing the radiator to be removed when required for transportation, installation or maintenance. Flange interfaces and radiator dimensions can be manufactured according to confirmed customer drawings.
PC type detachable transformer radiators use flange connections, allowing the radiator to be removed when required for transportation, installation or maintenance. Flange interfaces and radiator dimensions can be manufactured according to confirmed customer drawings.
| Parameter | Specification |
| Type | PC Detachable Transformer Radiator |
| Cooling Mode | ONAN / ONAF / OFAF |
| Panel Width | 480 / 520 mm |
| Center Distance | 500–4500 mm |
| Panel Pitch | 40 / 45 mm |
| Number of Panels | 5–35 |
| Panel Thickness | Customized according to requirements |
| Connection Type | Flange connection |
| Flange Dimensions | According to customer drawings |
| Internal Processing | Transformer oil flushing |
| Surface Pretreatment | Acid pickling and phosphating |
| Surface Finish | Electrophoretic coating, painting or hot-dip galvanizing as specified |
| Aplicação | Oil-immersed transformers |
Panel Forming → Assembly & Welding → Acid Pickling & Phosphating → Electrophoretic Coating → Painting / Finishing
Please provide your radiator drawing or key requirements, including panel width, center distance, panel pitch, panel quantity, flange dimensions, surface treatment and quantity.
